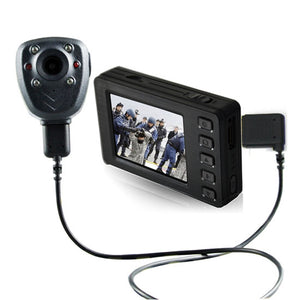

1080p IR Night Vison Button

Features:

Receiver:

• Product body & Camera detachable, portable carry.


• 960*320 HD 2.7 LCD


• Video Recording definition:1080P/30, 720P/60, 720P/30, 480P/30


• Support low Power sleep, 1 S wake video


• Support Continuous Recording, Correct Safety Protection.


• Support input police number & team number.


• Pre record function1-5 S.


• Moving Inspection Support


• Support record file name by Time, checking flexible.


• Digital remote control function.


• Support 16M photos memory


• Memory Card rewrite function


• Emergency fast recording switch


• Video & Audio recording in real time


• Support 32GB TF


• Detachable Lithium Battery, Work time≥4Hs, Standby Time≥35Hs

Camera:

• WDR Picture and Video quality


• Video resolution: 480P, 720P, 1080P


• Any resolution scaling down less than 2592x1944


• Product body & Camera detachable，portable carry


• High resolution digital recording and snapshoot


• Miniture size, 120°angel wide,IR night vision


• NTSC/PAL setting user interface on portable DVR


• Work in dark and light, indoor and outdoor


• Easy Intallation with standard mini HDMI jack

Specifications:

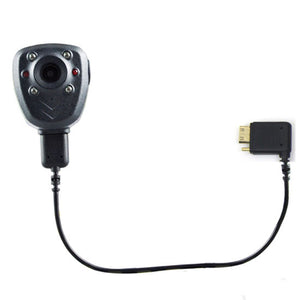

502HD Camera:

• Video Resolution: 1920*1080


• Pixel Size: 1.4um(H)*1.4um(V)


• Digital Picture Resolution: MAX 16M


• Video System: NTSC and PAL


• Built-in image sensor: Progressive 1/4 Inch  CMOS


• Illumination Sensitivity: 0.03 Lux / F2.0 (50IRE)


• Lens F/No: F2.0


• Lens Diameter: 3.7MM


• Angle of View: 110°


• Depth of Field: 10 cm ~ ∞


• Electronic Shutter: 1/8 ~ 1/30,000


• Video Output: AVI


• Audio Output: MAX 350mV 20Hz-20KHz


• IR LED: 4PC


• IR Output: ≤8M  （No compensation light）


• Power Supply Voltage: DC 3.3 V ± 5%


• Power Supply Current: 200 mA


• Physical Operating Temperature: -10℃ ~ 60℃


• Operating Humidity: 20 ~ 90%


• Storage Temperature: -30℃ ~ 80℃


• Dimension: 55X48X38 mm （With clamp）


• Weight: 10 g

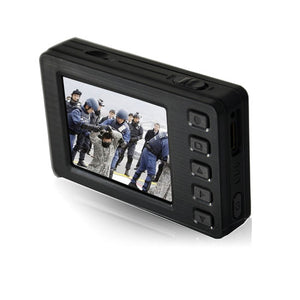

VD5000II DVR:

• Display: 2.7" 960 x 240 TFT LCD


• Video Input: NTSC/ PAL Auto-Detection NTSC/ PAL by UI setting and Standard/Motion Detection/Schedule/Pre-Event/


• Video Recording Mode: Pre-Motion/Countinue Shot/Pre-Capture/Over Write/Time Stamp


• Resolution Mode: 640x480 to Max 1920x1080 Real Time


• Max. Resolution: Above 720P (1280x960)1080P(1920x1080)


• EMS Memory: 128MB


• Memory Type: SD Card (Supports up to 32GB SDHC)


• Frame Rate: 1, 5, 10, 15, 25, 30 fps Adjustable


• DC5V to 2.5 Ø phone jack: 300mA Max


• DC3.3V to mini-HDMI: 250mA Max


• PC Interface: USB2.0


• Image Quality (Bit rate): In Standard 720x576@25 FPS (PAL)  High (16Mbps) / Medium (9Mbps) / Low (5Mbps) Adjustable


• Date/Time Table: YYYY/MM/DD (America) , HH,MM,SS (U.K.)


• Frame Counter Stamp: Yes


• Picture Format: Baseline JPEG


• Power Cunsumption: Video Playback:480mA, Recording:600mA


• Battery Life: 200min (with BA-2200)


• Video Press Format: H.264


• Frequency: 20HZ-20KHz


• Earphone Output: L20mW+RR 20mW[ 16 Ω](Max volume)


• IBM-PC: Can be connected to support USB2.0  PC equipment


• Built-in Battery: Li-Li-ion battery 2200Mah


• Video Recording Time: ≧4H


• Standby Time: ≧35H


• Language: English / Simplified Chinese / Traditional Chinese / Korean / Japanese / Russian


• Dimension: 85X54X17mm


• Weight: 71g

Package Includes:

• 1x VD5000II DVR


• 1x 502HD Camera


• 1x AV Cable


• 1x USB Cable


• 1x User Manual


• 1x Remote Control


• 1x 2200mA Battery
