Z2 H.264 1080P WIFI Remote Wireless Hidden Camera WiFi MiNi DV With Retail Package
Features:
The WIFI Camera uses a unique ultra-portable design,
It can be applied in various fields,
It is very convenient, safe and bring a colorful life for you,
Please set your camera correctly in accordance with the guidelines of the quick steps.
Specifications:
Camera:
Pickup Device: 1/4″Progressive Scan CMOS
Resolution: 1920*1080 1280*720 640*480
Minimum Illumination: 0.1LUX
SNR: ≥50db
Gain Control: Auto
WB: Auto
Board Mount: Board Mount
video:
AVC: H.264
Video Resolution: Main stream 1920*1080 Secondary stream 1280*720, 640*480, 320*240
Frame rate/bit rate: Main stream:1-30frame/sec Secondary stream 1-30frame/sec 256Kbps - 4Mbps custom
Audio:
Audio Compression: PCM/MP3
Network:
IP: TCP/IP HTTP DHCP DNS PPPoE NTP SNMP DDNS SMTP RTP
NI: WIFI 802.11b/g/n
RS-485port: 1 way, half-duplex RS-485, supports transparent channel connection
Port:
Audio Input: 1 way Line In 3.5mmaudio port
Audio output: 1 way Line Out 3.5mmaudio port
I/0port: 6pin Screwless terminals, One alarm input ports, one alarm output interface, RS485 interface
Local Storage: 1 TF card slot, support TF memory card standard, maximum support 32GB capacity
Function:
Motion Detector: Supports hardware multi-window, multi-zone, do not take up system resources
Dual-stream: Support
Video Block: Support video area shelter
DNS: Online free dynamic DNS service
Alarm Detection: Motion detection, video loss, network disconnection, screen shield, sensors linkage
Alarm function: Linkage alarm output, the client alerts
General:
Operating Temperature: -10 ~ +50
Humidity: Less90%(Non-condensing)
Power Supply: DC5V/2A adapter
Power Consumption: ≤5W

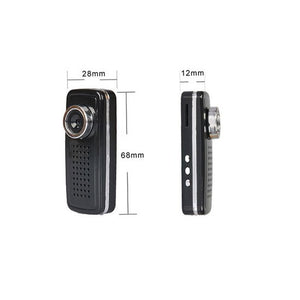

Size: 60mm×25mm×12mm
