Features & functions

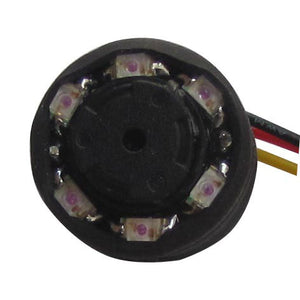

It's an ultra small high definition CCTV camera with excellent night vision.

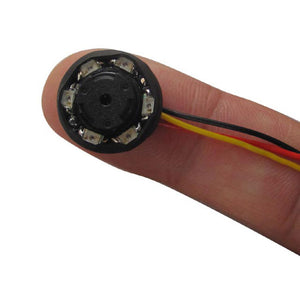

Size is 14.5 x 14.5 x 15.5mm only, Weight is 3g! Very easy to install and conceal.
Minimum illumination is 0.0lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Specifications:
Pick Up Element: Single chip 1/3 CMOS
System: NTSC, PAL
Number of Pixel: NTSC: 656(H)×492(V), PAL: 786(H)×576(V)
Image Signal Process: Digital Signal Processing System
Sensor Dimension: 4.75mm (H)×3.55mm (V)
Horizontal Resolution: Approximately 520TV Lines
Scanning System: 2:1 Interlace
Sensitivity: 0.00Lux/5M (LED OPEN)
Lens & View Angle: 55 °
S/N Ratio: 52dB
Electronic Shutter: OUT (1/60 S TO 1/100000 S), OUT (1/50 S TO 1/100000)S
Auto Gain Control: OUT
White Balance Control: OUT
Back Light Compensation: OUT
Video Out: 1.0V p-p/75ohm
Size (L X W X H): 14.5 x 14.5 x 15.5mm
Weight: 3g
Work Current: IR on 200mA
Power Requirement: DC 5.0V
Operating Temperature: - 10° C ~ +50°C ，less than 90% RH
Connection: PIN1- Red DC5V PIN2- Black GND PIN3-Yellow VIDEO OUT
Usage:
CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor
To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer
To view on your computer or laptop you will need a DVR card or USB
A standalone system that records is a standalone DVR
CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers
Pacakge Includes:
1x Mini Camera

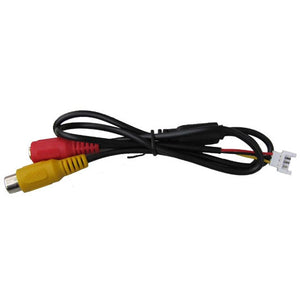

1x RCA/BNC Cable
1x AC Adapter
