Features:

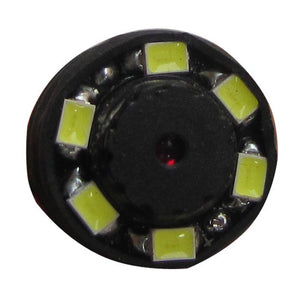

It's a ultra small high definition CCTV camera with excellent night vision.

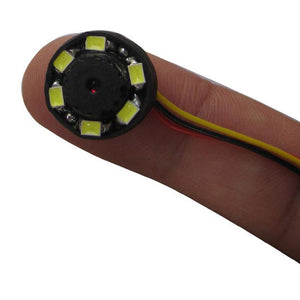

Size is 14.5 x 14.5 x 15.5mm only, Weight is 3g! Very easy to install.
Minimum illumination is 0.0lux, which can view clearly in complete darkness.
Full TV system. Applicable worldwide.
Specifications:
Pick Up Element: Single chip 1/3 CMOS
System: NTSC, PAL
Number of Pixel: NTSC: 656(H)×492(V), PAL: 786(H)×576(V)
Image Signal Process: Digital Signal Processing System
Sensor Dimension: 4.75mm (H)×3.55mm (V)
Horizontal Resolution: Approximately 520TV Lines
Scanning System: 2:1 Interlace
Sensitivity: 0.00Lux/5M (LED OPEN)
Lens & View Angle: 0.5mm F2.0 /55 °
S/N Ratio: 52dB
Electronic Shutter: OUT (1/60 S TO 1/100000 S), OUT (1/50 S TO 1/100000)S
Auto Gain Control: OUT
White Balance Control: OUT
Back Light Compensation: OUT
Video Out: 1.0V p-p/75ohm
Size (L X W X H): 14.5 x 14.5 x 15.5mm
Weight: 3g
Work Current: LED on 200mA
Power Requirement: DC 5.0V
Operating Temperature: - 10° C ~ +50°C ,less than 90% RH
Connection: PIN1- Red DC5V PIN2- Black GND PIN3-Yellow VIDEO OUT
Usage:
CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor
To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer
To view on your computer or laptop you will need a DVR card or USB
A standalone system that records is a standalone DVR
CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers
Pacakge Includes:
1x Mini Camera

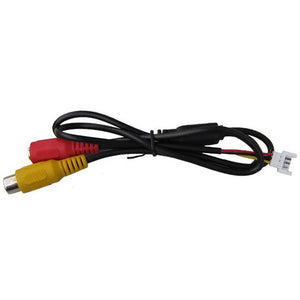

1x RCA/BNC Cable
1x AC Adapter
Features:
- It's a ultra small high definition CCTV camera with excellent night vision.
- Size is 14.5 x 14.5 x 15.5mm only, Weight is 3g! Very easy to install.
- Minimum illumination is 0.0lux, which can view clearly in complete darkness.
- Full TV system. Applicable worldwide.
Specifications:
- Pick Up Element: Single chip 1/3 CMOS
- System: NTSC, PAL
- Number of Pixel: NTSC: 656(H)×492(V), PAL: 786(H)×576(V)
- Image Signal Process: Digital Signal Processing System
- Sensor Dimension: 4.75mm (H)×3.55mm (V)
- Horizontal Resolution: Approximately 520TV Lines
- Scanning System: 2:1 Interlace
- Sensitivity: 0.00Lux/5M (LED OPEN)
- Lens & View Angle: 0.5mm F2.0 /55 °
- S/N Ratio: 52dB
- Electronic Shutter: OUT (1/60 S TO 1/100000 S), OUT (1/50 S TO 1/100000)S
- Auto Gain Control: OUT
- White Balance Control: OUT
- Back Light Compensation: OUT
- Video Out: 1.0V p-p/75ohm
- Size (L X W X H): 14.5 x 14.5 x 15.5mm
- Weight: 3g
- Work Current: LED on 200mA
- Power Requirement: DC 5.0V
- Operating Temperature: - 10° C ~ +50°C ,less than 90% RH
- Connection: PIN1- Red DC5V PIN2- Black GND PIN3-Yellow VIDEO OUT
Usage:
- CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor
- To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer
- To view on your computer or laptop you will need a DVR card or USB
- A standalone system that records is a standalone DVR
- CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers
Pacakge Includes:
- 1x Mini Camera
- 1x RCA/BNC Cable
- 1x AC Adapter
