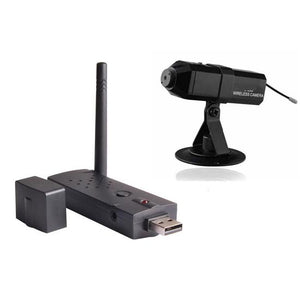

Wireless with USB DVR Set WC17

2.4G Wireless Color Camera Build-in Li-battery Kits

Functions:

• Send e-mails attachment with image


• Save image on Hard Disk


• Sound alarm


• Video signal filter,for filtrate Active and Invalid channel


• Alarm when signal is lost


• Motion Detection


• Adjustable sensitivity


• Automatically lock,while not any operate


• Schedule Monitoring seaaions,for timer snap


• Record video/audio(with usb 2.0 audio interface),snap shot


• Automatic Space Management. Stop recorder or capture still automatically on disk full


• Support 4 Channel video inputting on one computer


• Support on Screen Display.Display data and time,or channel description on video


• Supports manual open/close Invalid channel, or add/delete channel description


• Supports login and logout, by User Name and Password


• Supports running background stealthy


• One video/audio input

Specifications:

Receiving Frequency:

• DH1: 2414MHz


• DH2: 2432MHz


• DH3: 2450MHz


• DH4: 2468MHz

Camera:

• Imaging sensor: 1/3" inch COMS.


• Validity pixel: PAL: 628*582; NTSC:510*492.


• Horizontal definition: 380line.


• Minimum Illumination: 1.5Lux*F1.5.


• View Angle: 62degree.

Frequency:

• DH1: 2414MHz


• DH2: 2432MHz


• DH3: 2450MHz


• DH4: 2468MHz


• Gain Control: Automatic


• Operation Temperature: -10~+50 Drgee RH85% Max


• Storage Temperature:-40~+80 Drgee RH85% Max


• Open Transmission Distance: 10mW


• Power Consumption: 5V ± 5%DC; 500mA

Package Includes:

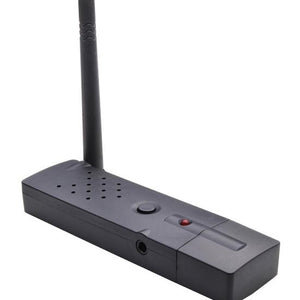

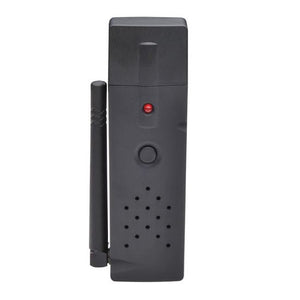

• 1x 2.4G Wirless USB DVR

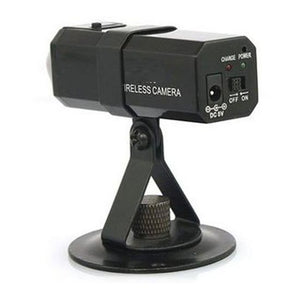

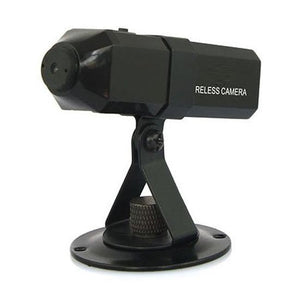

• 1x 2.4G Wirless Camera


• 1x Power Charger


• 1x User Manual
